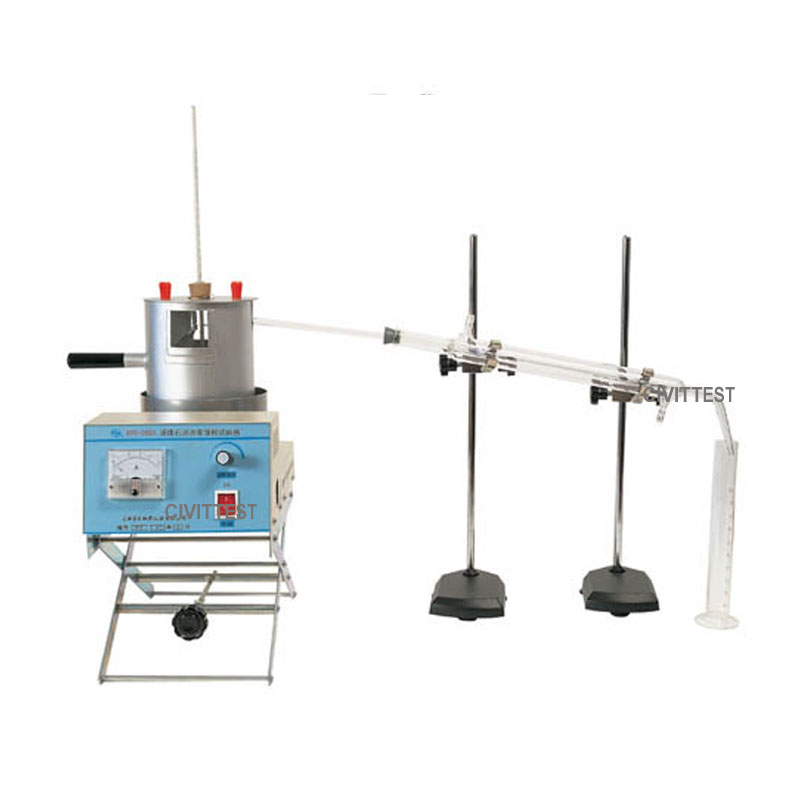

Product > Asphalt Testing > Bitumen Distillation of Cut-back Apparatus

PRODUCT DETAILS

Power supply: AC 220 V±10%, 50 Hz.
Distillation flask shield: Made by iron sheet, its surface is plated to black, and it is with a wooden handle.

Distillation flask: endure temperature higher than 500 °C.

Diameter of flask: 102±2.0 mm, and the neck of the flask is 25±1.2 mm.

The angle between branch tube and flask neck is 75±3 °.

Thermometer: 0~360 °C, scale division is 1 °C.
Graduated flask: The graduated flask is 100 ml, and scale division is 0.5 ml.
