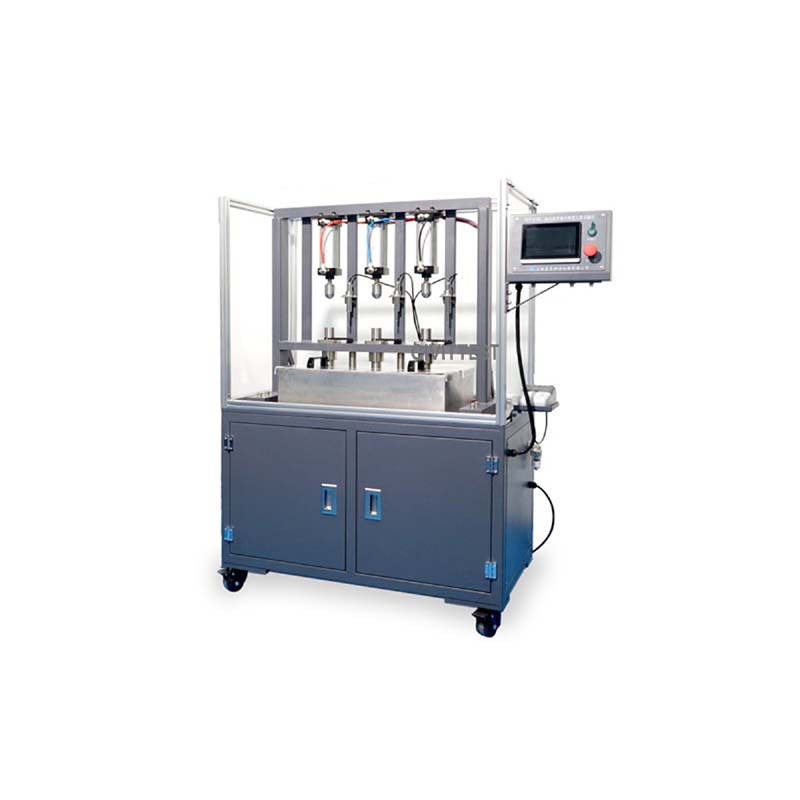

Poured Asphalt Mixture Penetration Tester Penetrometer MP-20
product
description:
It
is mainly used to measure the penetration of the cast asphalt mixture, that is,
the deformation of the asphalt mixture under the specified temperature and
load, so as to evaluate the high temperature stability of the cast asphalt
mixture and guide its proportioning design.
Features:
Adopt
high-quality steel structure, high rigidity and good stability.
Using
high-precision displacement sensor, the accuracy is better than ± 0.01mm under
large range.
It
adopts industrial touch screen display control, simple operation, and can save
working parameters.
Display
relevant parameters in real time.
Test
results can be printed.
Load
time and displacement curves can be displayed.
The
loading method controlled by ITV is adopted, which has no impact on loading,
simple operation and good safety.
Three
specimens can be made at the same time, and the test efficiency is high.
Equipped with a water circulation system, the temperature is more uniform.
Number |
Name |
Technical indicators |
1 |
Penetration rod diameter |
25.2mm |
2 |
Penetration rod weight |
2.5kg |
3 |
Displacement measurement range |
0~20mm |
4 |
Displacement accuracy |
±0.01mm |
5 |
Temp. control range |
Room temp. ~60℃ |
6 |
Temperature accuracy |
±0.1℃ |
7 |
Specimen dimension |
70.7mm cube |
8 |
Loading pressure |
515N±9.81N |
9 |
Voltage |
220V 50HZ |
10 |
Power |
2KW |
11 |
Dimension |
1500x600x1680mm |
12 |
Weight |
150kg |
