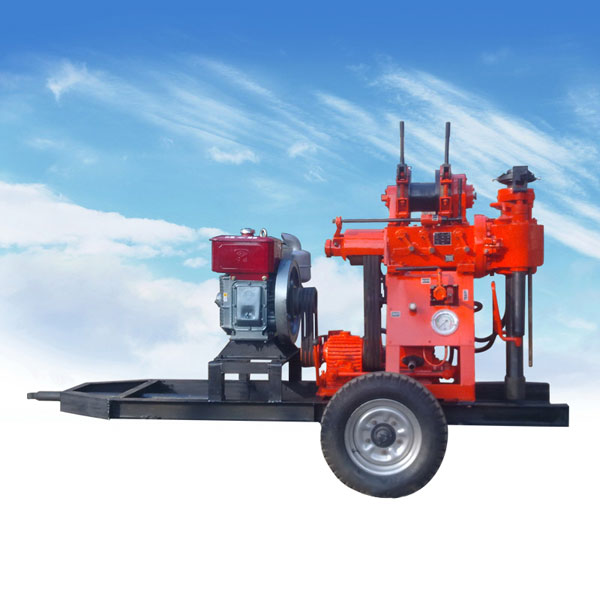

Product > Field Testing > Soil Rock Field Drilling Rig trailer truck

PRODUCT DETAILS

Drilling depth: 110m 150m


Diameter of the final hole: 73mm

Hydraulic pump pressure: 1.2Mpa

Rotating speed of hydraulic pump: 1500rpm

Axial rotating speed: 189, 295, 635, 790, 1010rpm

Axial travel: 450mm

Lifting ability: 9.8KN

Steel wire diameter: 9.3mm

Max. pressure: 1.2Mpa

Working pressure: 0.7Mpa

Output volume: 100L/min

Power source: 18HP diesel engine
