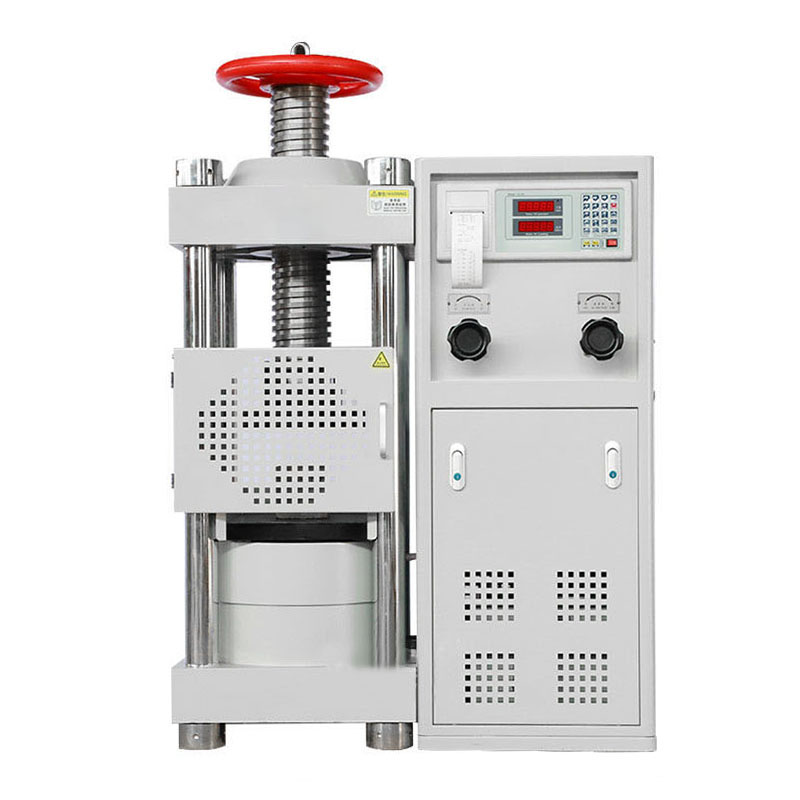

Digital Compression Testing Machine

CT-D2000

It is suitable for the compressive strength test of building materials such as concrete, cement, airbrick, fire proofing tile, engineering ceramics and building stone.

1. Maximum range: 2000KN
2. Level: Level 1
3. Minimum resolution: 0.1KN
4. Maximum distance between pressure plates: 320mm
5. Size of upper/lower pressure plate: φ 240mm, 250 * 350mm
6. Piston diameter x maximum stroke: φ 250mm x 80mm
7. Motor power: 0.75KW
8. Input voltage: AC220V ± 10V/50Hz
9. Dimensions: 910 × 460 × 1320mm
