Product > Concrete Testing > Digital Compression Testing Machine (Automatic Screw Post Moving, Safety Door) C

PRODUCT DETAILS

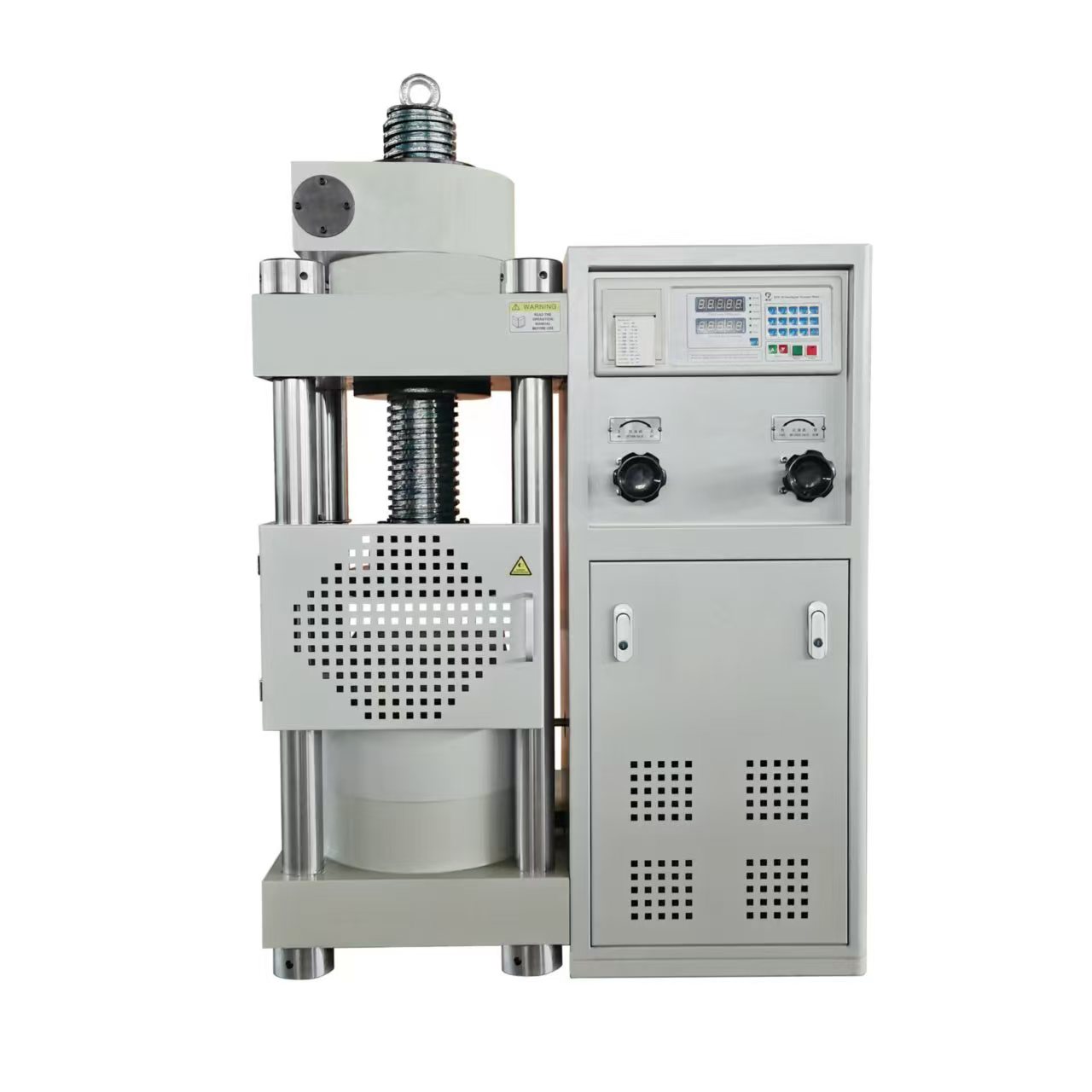

Digital Compression Testing Machine

(Automatic Screw Post Moving, Safety Door)

CT-DA2000/3000

It is suitable for the compressive strength test of building materials such as concrete, cement, airbrick, fire proofing tile, engineering ceramics and building stone.

Automatic screw post moving and equip safety door.

Capacity: 2000KN/3000KN

Relative indication error: ±1%

Platen size: 320×260mm

Vertical clearance: 330mm

Max. piston stroke: 50mm

Rated pressure of the hydraulic pump: 40Mpa

Power: AC220V/380V 50Hz

Piston rise speed: 50mm/min.

Piston back speed: 20mm/min.
